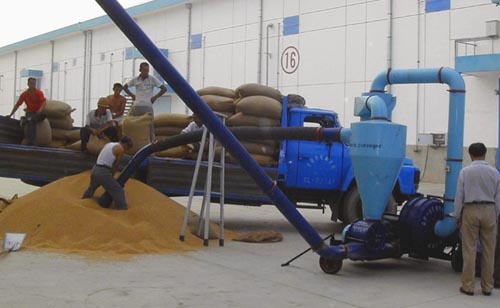

Huanhai Group Company supply differenct capacity Pheumatic corn conveyor equipments, they are widely used in warehouse, grains processing plants, small yard, it can discharge material like paddy, rice, maize, wheat, beans, cottons seeds, particles fertilizer, plastics pellets etc, it can greatly increase the working efficiency, also it can protect health of people and it is enviornment friendly.
|
Model |
TD-5 |
TD-10 |
TD-15 |
TD-20 |
TD-30 |
|
Max convey quantity（T/h） |
5 |
10 |
15 |
20 |
30 |
|
Blowing fan power（kw） |
7.5 |
11 |
15 |
22 |
37 |
|
Compressor air（h20/mm） |
3300 |
3600 |
4000 |
4000 |
4000 |
|
Horizontal convey distance |
30m |
40m |
70m |
100m |
120m |
|
Heading |
8m |
12m |
15m |
20m |
30m |
Characters:
1) Aire pressure is high, conveying distance is long, heading high, size compact, low noise, low power consumption.
2) As per request can powered by electric motors, also can match tractors etc mobile machines, this makes working more easier and transportation convinient.
3) Can act as ruff cleaning machine, to remove dust of the goods.
4) Structure is simple, easy to operate.
|
